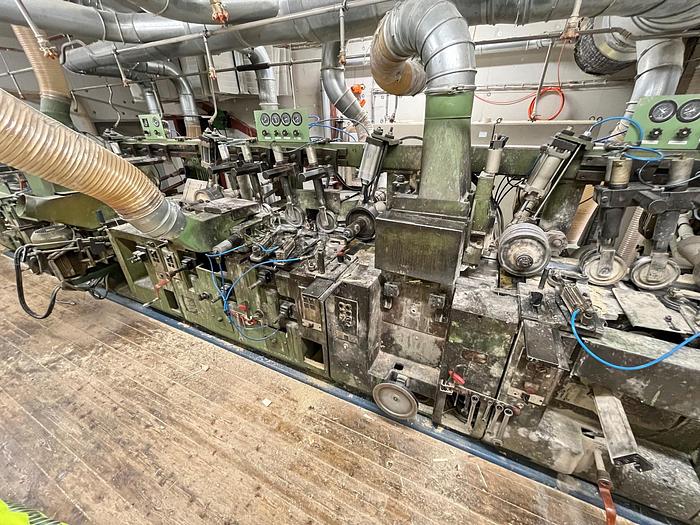

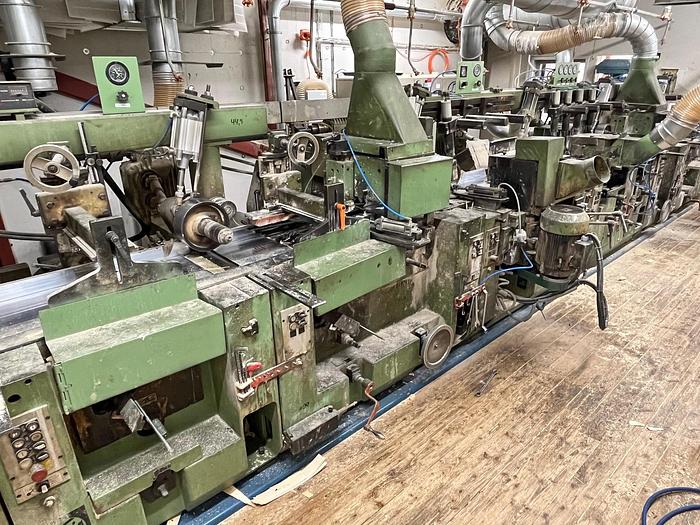

WEINIG Hydromat Super 30-B (200 m/min)

WEINIG high speed moulder, type Hydromat Super 30-B

Manufacture year 1990

Machine specifications:

- Planing width 300 mm

- Planing height 120 mm

- Electric driven feeding system, motor 55 kW

- Feed speed 20 - 200 m/min

Spindle lay-out:

1. Horizontal spindle bottom, motor 30 kW

2. Horizontal spindle top, motor 37 kW

3. Vertical spindle right, motor 15 kW

4. Vertical spindle left, motor 18.5 kW

5. Vertical spindle right, motor 11 kW (tiltable)

6. Vertical spindle left, motor 11 kW (tiltable)

7. Horizontal spindle top, motor 18.5 kW

8. Horizontal spindle bottom, motor 22 kW

9. Horizontal spindle bottom, motor 15 kW

- Front bearing for horizontal spindles

- Jointers for spindles

- Short infeed table

- Bed plates hard chrome

- Automatic lubrication system

- Heavy duty feed rollers 220 mm

- Driven feeding rollers in table

- Heavy duty cardan feeding

- Feed speed frequency controlled

- Separate electricity trunk with separate control panel

- Incl. accessories

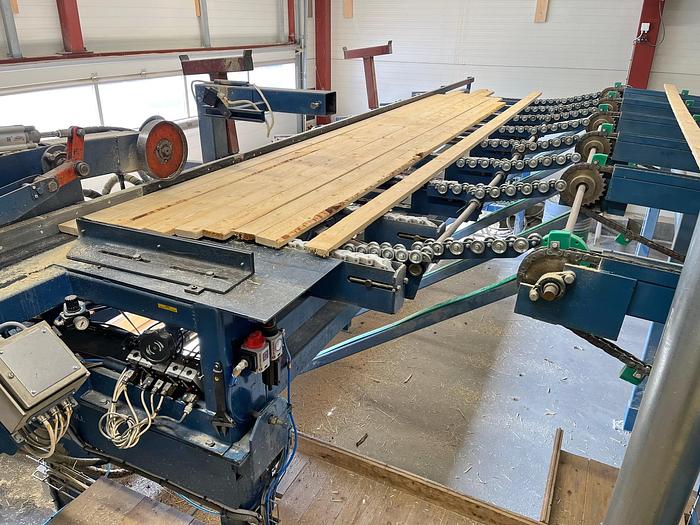

To combine with ALMAB automatic infeed table
