DIMTER VKC 300

DIMTER finger jointing line type VKC 300

Specifications:

Wood lenght at infeed : 1800 - 6000 mm

Wood width : 100 - 275 mm

Wood thickness : 25 - 100 mm

Wood dimensions : min. 25 x 125 mm

  max. 75 x 275 mm / 100 x 250 mm

Max. wood length in buffer station : 15000 mm

Max. wood length after stacking : 11350 mm

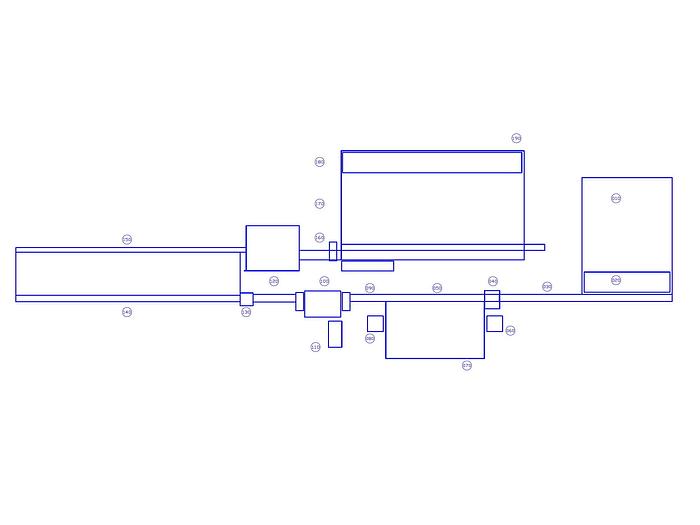

Consisting of:

010 Cross chain transport for wood packages

020 Lifting table with cross chain transport, capactiy 6000 kg

030 Infeed and marking station

040 optimizing cross cutting station

050 Roller conveyor with cross chain transport

060 Pre-heating station left, high frequency

070 Lift with cross chain transport

080 Pre-heating station right, infra-red

090 Roller conveyor

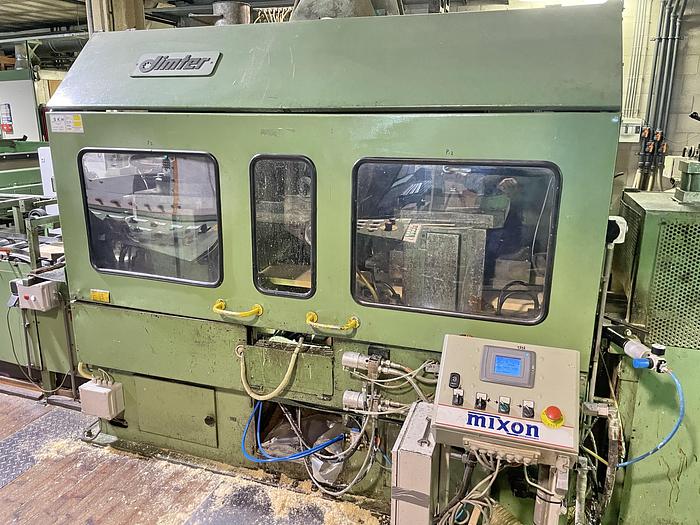

100 Finger jointing machine, type VKC 300

110 Mixon glue applicator

120 Roller conveyor

130 Cross cutting saw with electronic lenght measuring

140 Roller conveyor with cross chain transport and buffer station

150 Feeding station to moulder

### (moulder not included)

160 Roller conveyor Cross cutting saw with electronic lenght measuring

170 Paternoster stacking system

   11 stacking units, max. length 11350 mm

180 Lifting table with cross transport, capactiy 6000 kg

190 Roller conveyor for wood packages

New PLC programm in 2017

Including with:

- Mixon glue system, type 2453-S2X2

- Hegewald & Peschke testing table, type Inspekt 100

- spare parts for Dimter line
