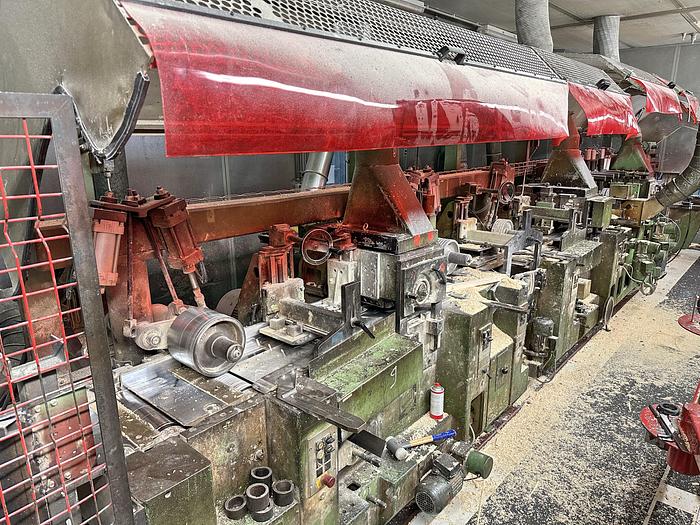

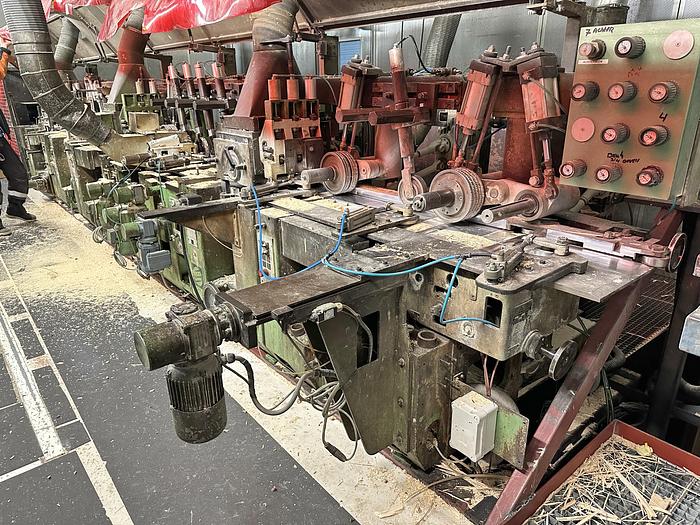

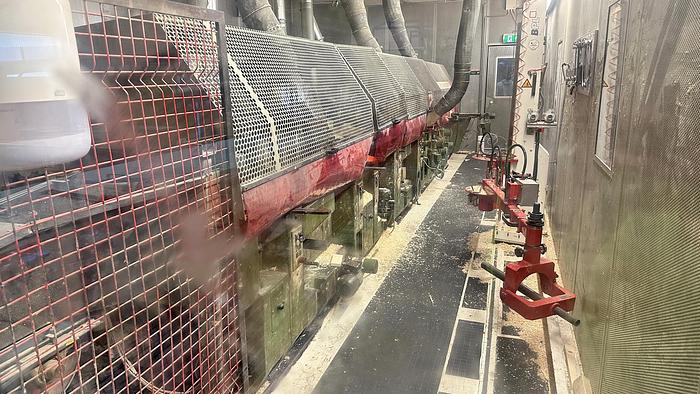

WEINIG Hydromat super 30-B (180 m/min)

WEINIG high speed moulder, type Hydromat Super 30-B

Machine specifications:

- Planing width 300 mm

- Planing height 120 mm

- Electric driven feeding system, motor 55 kW

- Feed speed 8 - 180 m/min

Spindle lay-out:

1. Horizontal spindle bottom, motor 22 kW

2. Horizontal spindle top, motor 30 kW

3. Vertical spindle right, motor 18,5 kW

4. Vertical spindle left, motor 22 kW

5. Horizontal spindle top, motor 30 kW

6. Horizontal spindle bottom, motor 37 kW

7. Horizontal spindle bottom, motor 45 kW

8. Horizontal spindle top, motor 30 kW

9. Horizontal spindle top, motor 22 kW

- Front bearing for horizontal spindles 1+2+5, 6, 7, 8 and 9

- Digital positioning for spindle 3+4+8

- Short infeed table

- Bed plates hard chrome

- Automatic lubrication system

- Heavy duty feed rollers 220 mm

- Driven feeding rollers in table

- Heavy duty cardan feeding

- Feed speed frequency controlled

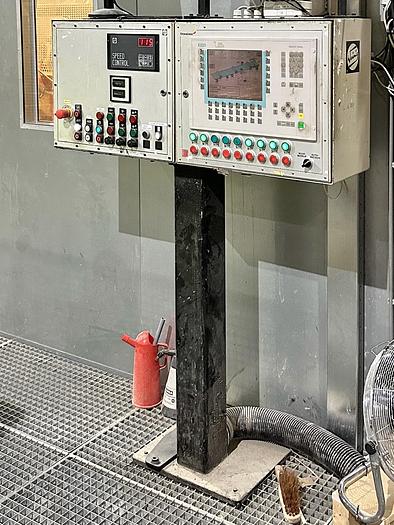

- Separate electricity trunk with separate control panel

- Rebuild electric system with Siemens S7

- Incl. accessories

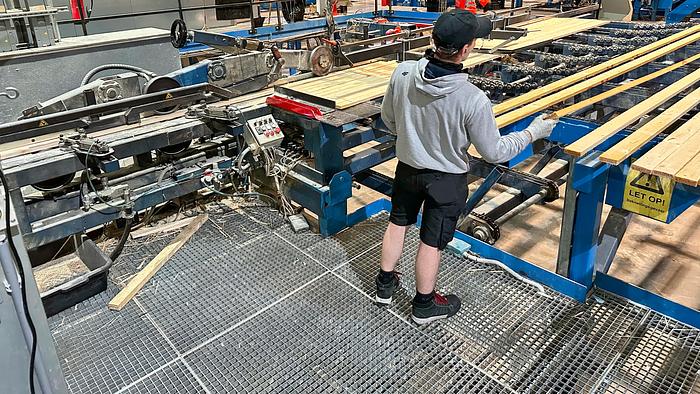

With ALMAB automatic infeed table
