WEINIG Unimat 23
WEINIG Unimat 23
Plaats:Hardinxveld-Giessendam, Nederland
Beschrijving

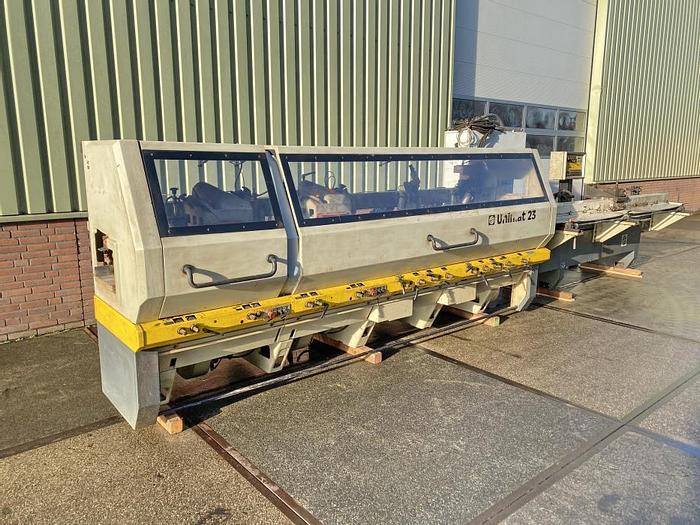

WEINIG four side moulder, type Unimat 23 Manufacture year 1997, yellow line Machine specifications: Planing width 20 - 230 mm Planing height 6 - 140 mm Hydraulic feeding, 6 - 36 m / min Motor power feeding 8.5 kW Spindle layout: 1. Horizontal bottom spindle, motor power 15 kW 2. Vertical right spindle, motor power 11 kW 3. Vertical left spindle, motor power 11 kW 4. Vertical right spindle, motor power 11 kW 5. Vertical left spindle, motor power 11 kW 6. Horizontal top spindle, motor power 22 kW 7. Horizontal bottom spindle, motor power 18.5 kW 8. Horizontal top spindle, motor power 22 kW 9. Horizontal bottom spindle, motor power 22 kW - Surface table 3000 mm - Groove table - Spindle diameter 50 mm - Automatic lubrication system - Driven feeding rollers in table Heavy duty cardan feeding - Feed speed frequency controlled - Digital read out feeding speed - Separate electricity trunk with separate control panel - Incl. accessories With infeed device at surface table
Specificaties
Fabrikant | WEINIG |
Model | Unimat 23 |
Conditie | Gebruikt |
Voorraad nummer | 22064 |
