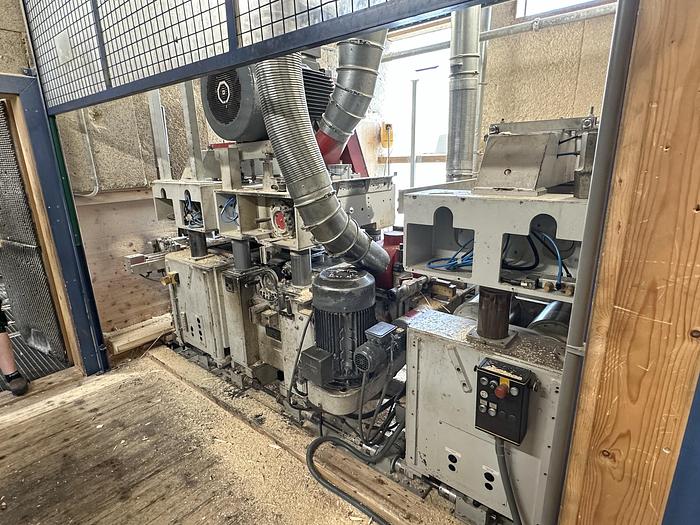

REX high speed planer, type SUPERMASTER - 4/31-K

Manufacture year 2010 (left hand version)

Machine specifications

- Working width 50 - 305 mm

- Working height 20 - 120 mm

- Feed speed 25 - 160 m/min

Spindle layout:

1. Horizontal spindle bottom, motor 55 kW

2. Horizontal spindle top, motor 75 kW

3. Vertical spindle right, motor 25 kW

4. Vertical spindle left, motor 25 kW

- Upper part can be quickly adjusted with 8 lifting columns

- 4 driven feed rollers in the upper part of the machine

- 4 driven feed rollers in machine stand

- Vertical spindles with floating shafts

- Heavy duty outfeed unit with 2 + 2 rollers

- Feed speed with frequency converter

- Control panel with digital positioning controller for planing width and planing thickness
