LEDINEK SUPERLES 1300 4V+4F-S

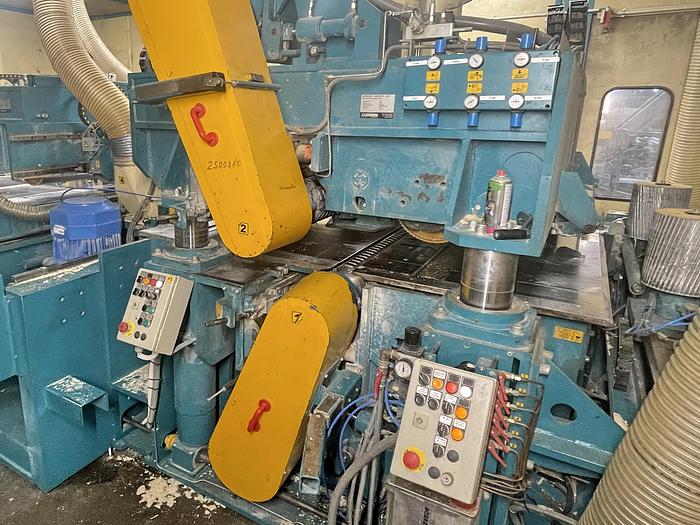

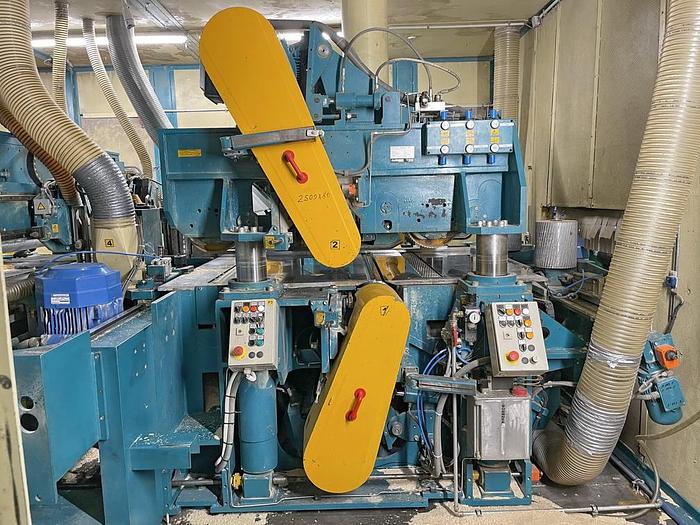

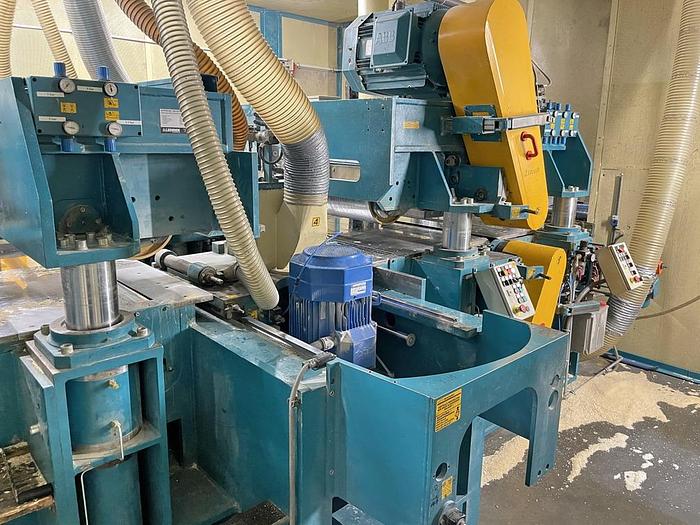

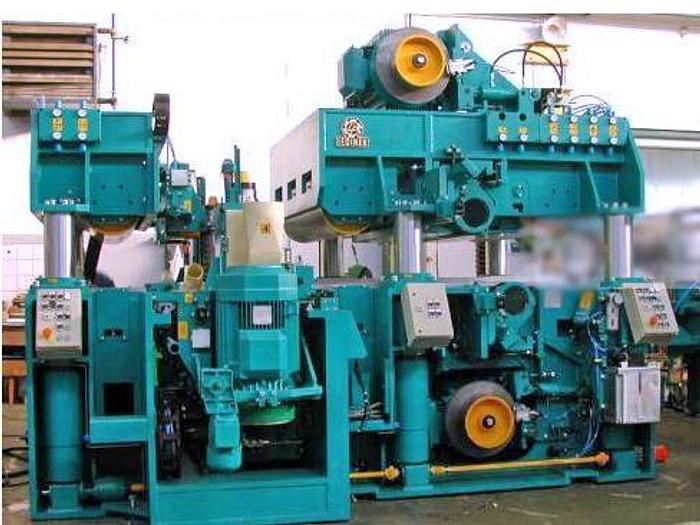

LEDINEK heavy duty wide planer, type SUPERLES 1300 4V+4F-S

Manufacture year 2001

Machine specifications

- Planing width 70 - 1350 mm

- Planing height 20- 320 mm

- Feeding 10 - 45 m/min

Spindle lay-out:

1. Horizontal bottom spindle, motor power 45 kW

2. Horizontal top spindle, motor power 55 kW

3. Vertical right spindle, motor power 18.5 kW

4. Vertical left spindle, motor power 22 kW

5-8. 4 pc. chamfering units, each 3.0 kW

9-10. 2 pc. rabbet units, each 13 kW

- All spindles motors with brakes

- Hydraulic front bearing for planing spindles

- Horizontal spindles quick exchangeable

- Vertical spindles with exchangeable spindles

- Automatic jointers for spindle 1 - 4

- Digital controller with Siemens S7

- Heavy duty vertical infeed rollers

- Driven feeding rollers in table

- Driven out feeding rollers

- Heavy duty cardan feeding

- Cromed tables plates

- With tooling and accessories
