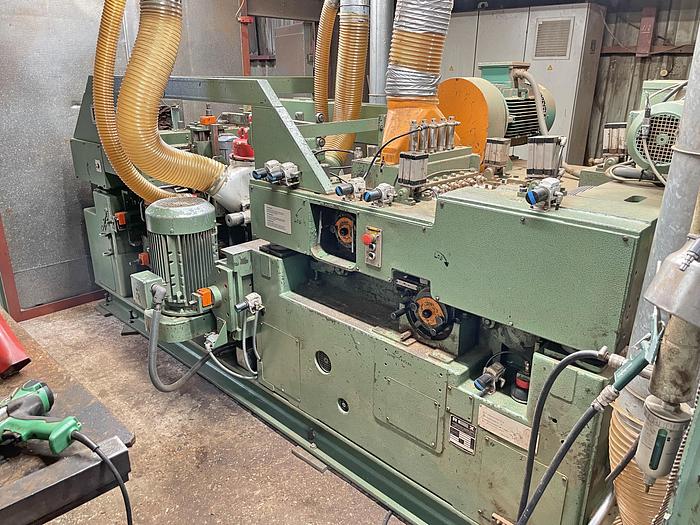

REX moulder, type HOMS 310 K

(A+D+FR+FL+AFV+HFRu+AZG)

Manufacture year 2002

Machine specifications

- Planing width 50 - 305 mm

- Planing height 20 - 300 mm (2-sides)

- Planing height 20 - 210 mm (4-sides)

- Feeding up to 40 m/min

Spindle lay-out:

1. Horizontal bottom spindle, motor power 15 kW

2. Horizontal top spindle, motor power 22 kW

3. Vertical right spindle, motor power 15 kW

4. Vertical left spindle, motor power 18.5 kW

#. 2 pc. chamfering units left + right, each 1,85 kW

5. Horizontal bottom spindle, motor power 22 kW

- All spindles motors with brakes

- Hydraulic front bearing for spindle 1 - 5

- Digital controller for adjustment spindle 2 and 4

- Driven feeding rollers in table

- Driven out feeding rollers

- Heavy duty cardan feeding

- With tooling and accessories
