Kupfermühle Vuin-Plus

KUPFERMÜHLE moulder, type VUIN-PLUS

Planing width                : 600 mm

Planing height 2-side     : 250 mm

Planing height 4-side     : 200 mm

Fixed table height         : 900 mm

Feeding                        : 5 – 30 m/min

Spindle layout:

1. Horizontal spindle bottom, motor 11 kW

2. Horizontal spindle top, motor 15 kW

3. Vertical spindle right, motor 11 kW

4. Vertical spindle left, motor 11 kW

#. 2 pc. chamfering units left + right, each 1.1 kW

- heavy duty outfeed

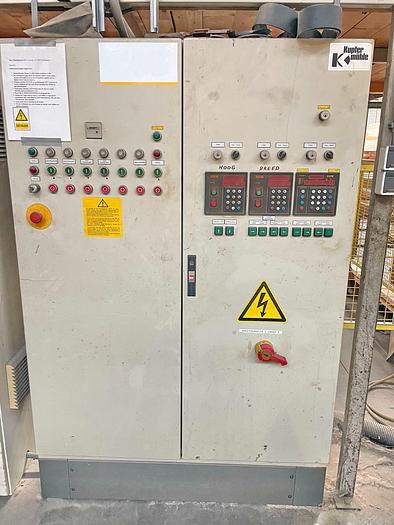

- Digital controller for adjustment spindle 2, 3 and 4

- Driven feeding rollers in table

- Driven out feeding rollers

- Heavy duty cardan feeding

- Mounted at a moveable machine frame

- Incl. accessories
